PowerTrace II LITE

Highlights:
• 512 MByte trace memory
• Fast trace upload to the host computer
• Maximum bandwidth of 10.8 GBit/s
• Universal trace module, connect to target via TRACE32 AutoFocus II or TRACE32 Serial Preprocessor
• Support for parallel trace ports with up to 32-bit
• Support for serial trace ports up to 4 lanes
• Support for TRACE32 Streaming up to 50 MByte/s

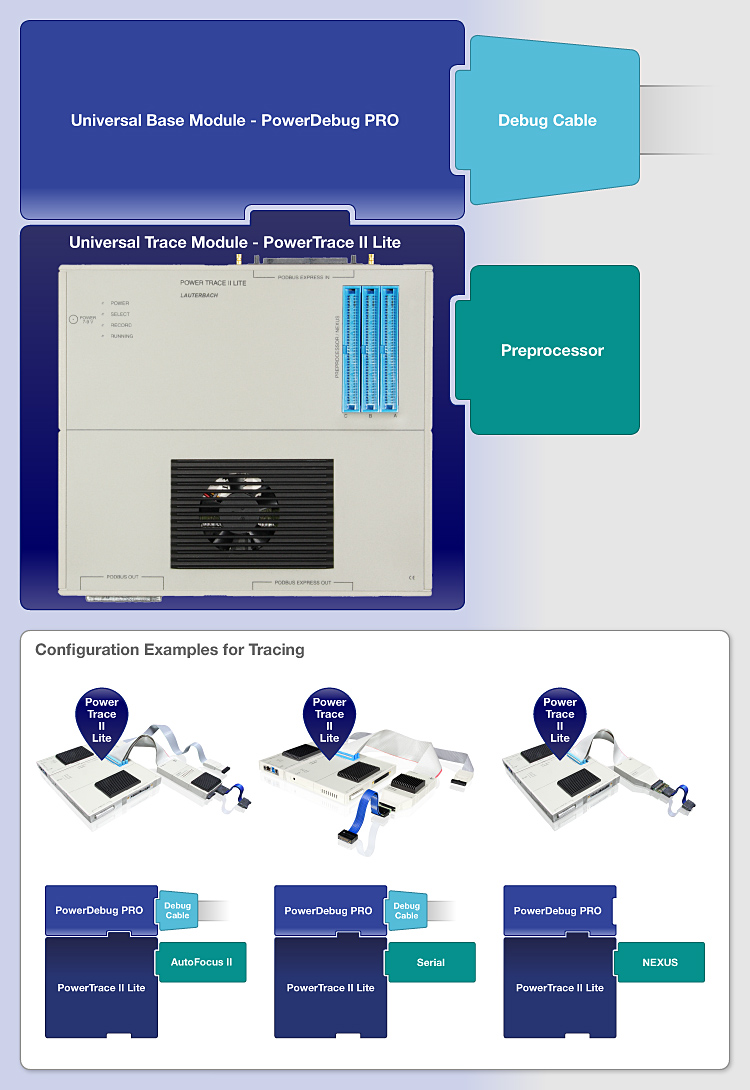

Configuration:

PowerTrace II LITE is an extension to the debug module TRACE32 PowerDebug X50 and offers a trace memory of 512 MByte, which can record trace data conveyed off-chip via a parallel or serial trace port.

Data Rates TRACE32 AutoFocus II Preprocessor

• Parallel trace ports 600+ MBit/s per pin for a port with up to 8-bit (+TCTL) in DDR mode
• Parallel trace ports up to 450 MBit/s per pin for a port with 16-bit (+TCTL) in DDR mode
• Parallel trace ports up to 225 MBit/s per pin for a port with 32-bit (+TCTL)

Data Rate TRACE32 Serial Preprocessor

Serial trace ports up to 4 lanes, each lane max. 6.5 Gbit/s, but only up to 10.8 GBit/s in total
