PowerDebug X50

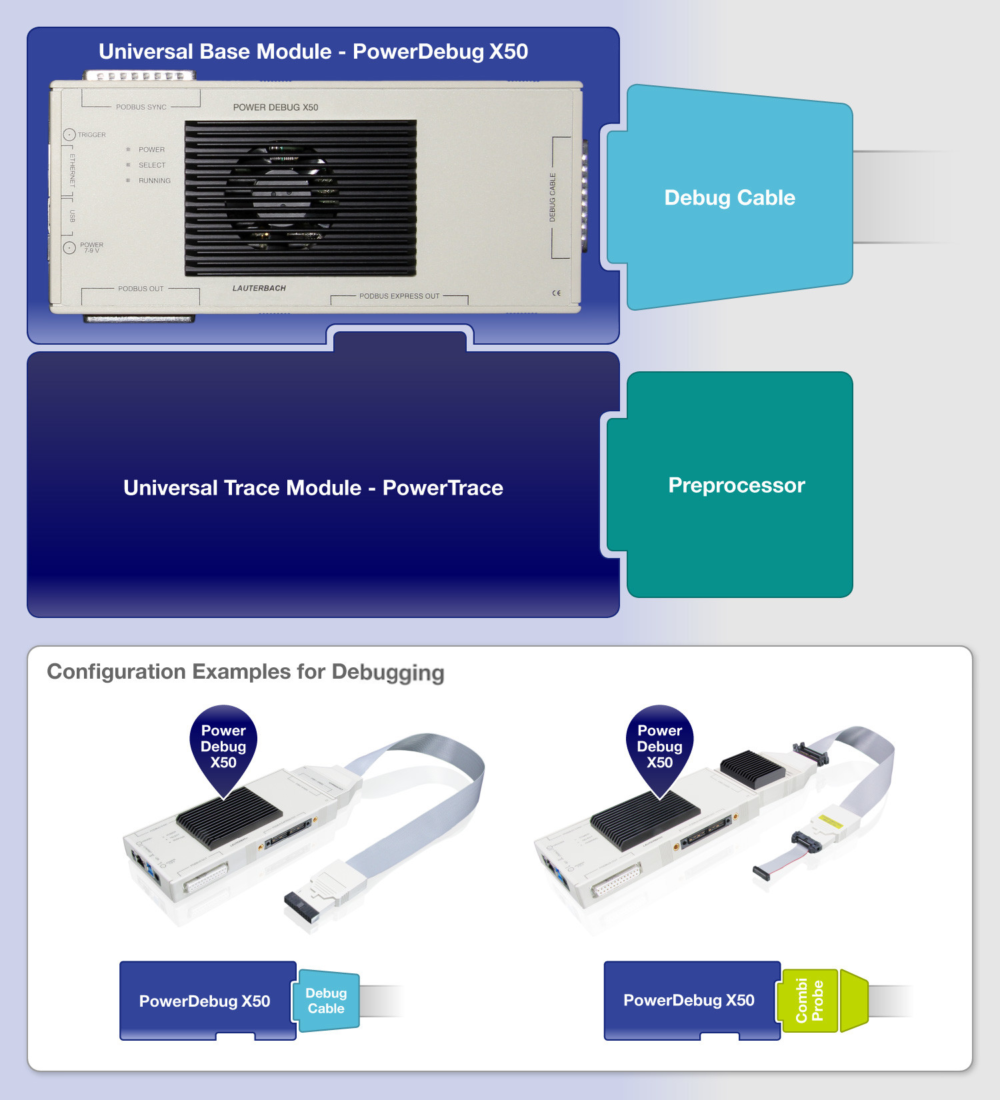

Based on Lauterbach’s modular concept, the hardware tools are composed of two parts: standard base modules and architecture-specific cables/probes. All base modules are completely universal and architecture-independent. The architecture-specific cables/probes connect the base modules and targets which enables the migration to new processor architecture by simply changing the cable/probe.

Highlights

• USB3.0 and Gigabit Ethernet interface to all hosts
• Connects to target via TRACE32 Debug Cable or TRACE32 CombiProbe, which provide debug support for almost 100 core architectures, such as ARC, Cortex-A/-R/-M, Power Architecture, RISC-V, TriCore, Xtensa
• PODBUS Express interface to TRACE32 trace extension modules PowerTrace II LITE / III and PowerTrace Serial2, which provide off-chip trace support for all common standardized and proprietary trace protocols
• Trigger connector to send and receive trigger pulses

Can be used for all TRACE32 Debug Cables and for the TRACE32 CombiProbe:

Extendable with the following Trace Extensions:

PowerTrace Serial 2

• 4 GByte or 8 GByte of trace memory
• For high-performance serial tracing
• Additional trace protocol licenses can be added
• Serial Trace via Aurora/HSSTP: 12.5 Gbit/s per lane @ 8 lanes, 22.5 Gbit/s per lane @ 4 lanes
• Maximum bandwidth of 80 GBit/s
• Serial Trace via PCIe: PCIe Gen 2 x8, PCIe Gen 3 x 8, PCIe Gen 4 x4
• Option for logic analyzer and energy profiling: via Mixed-Signal Probe
• Fast trace upload to the host computer
• Support for TRACE32 Streaming up to 400 MByte/s
• TRACE32 Standard Probe option
• TRACE32 Analog Probe option
• Support for Arm/Cortex, ARC, C6000, CEVA-X, MPC57xx/SPC5, QorIQ, RH850, RISC-V, TriCore, Xtensa

More …

PowerTrace III

• 8 GByte trace memory
• Fast trace upload to the host computer
• Maximum bandwidth of 19.2 GBit/s
• Universal trace module, connect to target via TRACE32 AutoFocus II or serial preprocessor
• Support for parallel trace ports with up to 32-bit
• Support for serial trace ports up to 4 lanes
• Support for TRACE32 Streaming up to 400 MByte/s
• TRACE32 Mixed-Signal Probe option

More ..

PowerTrace II LITE

• 512 MByte trace memory
• Fast trace upload to the host computer
• Maximum bandwidth of 10.8 GBit/s
• Universal trace module, connect to target via TRACE32 AutoFocus II or TRACE32 Serial Preprocessor
• Support for parallel trace ports with up to 32-bit
• Support for serial trace ports up to 4 lanes
• Support for TRACE32 Streaming up to 50 MByte/s

More …
