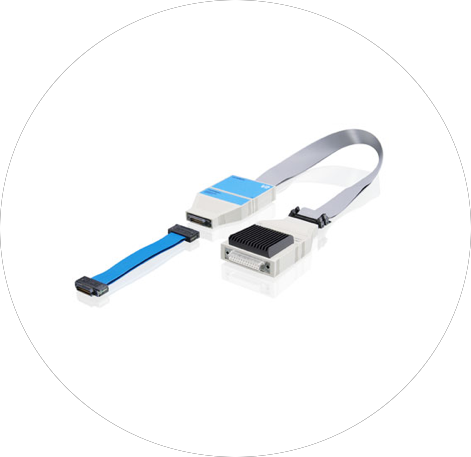

CombiProbe MIPI60-Cv2


• CombiProbe MIPI60-Cv2 provides debug and system trace capability
• Support for standard JTAG, debug HOOKs and I2C bus
• Support for merged debug ports (two JTAG chains per debug connector)
• Support for survivability features (threshold, slew rate, etc.)
• Support for system trace port with up to 8 trace data channels
• 512 MByte of trace memory
• Voltage range 1.0 V to 1.8 V
• SMP debugging (including hyperthreading)
• AMP debugging with other architectures
• BIOS/UEFI debugging with tailor-made GUI for all UEFI phases
• Linux- and Windows-aware debugging
• Hypervisor debugging
• Support for system trace decoding via the Intel® Trace Hub Library
• AUTOSAR aware debugging and profiling

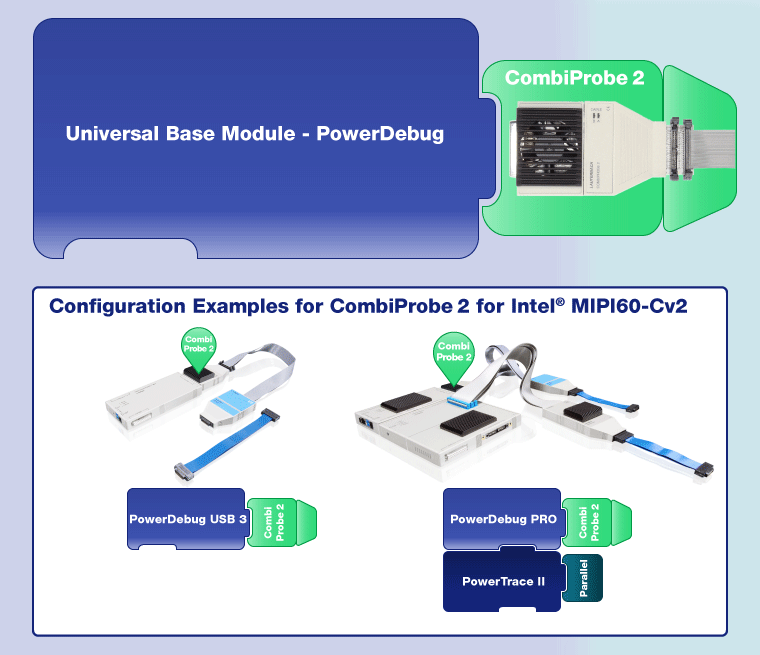

The photo on the left side shows a standard configuration. The extended configuration shown on the right side allows to record additionally Intel® Processor Trace data conveyed off-chip.
