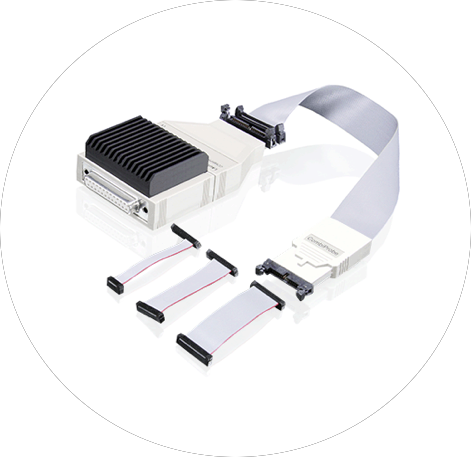

CombiProbe 2 for TriCore DAP

Highlights

• Debug cable and 512 MByte of trace memory
• Whisker cable with 26-pin automotive connector
• Same debug features as the TRACE32 Debug Cables for TriCore
• 512 MB of trace memory for DAP Streaming
• DAP Streaming with up to 30 MByte/s
• DAP streaming requires a DAP mode, for performance reasons, we recommend DAPWide at 160 MHz
• DAP Streaming for filtered tracing, GTM tracing and Compact Function Trace
• AUTOSAR-aware profiling
• TRACE32 Streaming for long-time recording
• Support for INFINEON

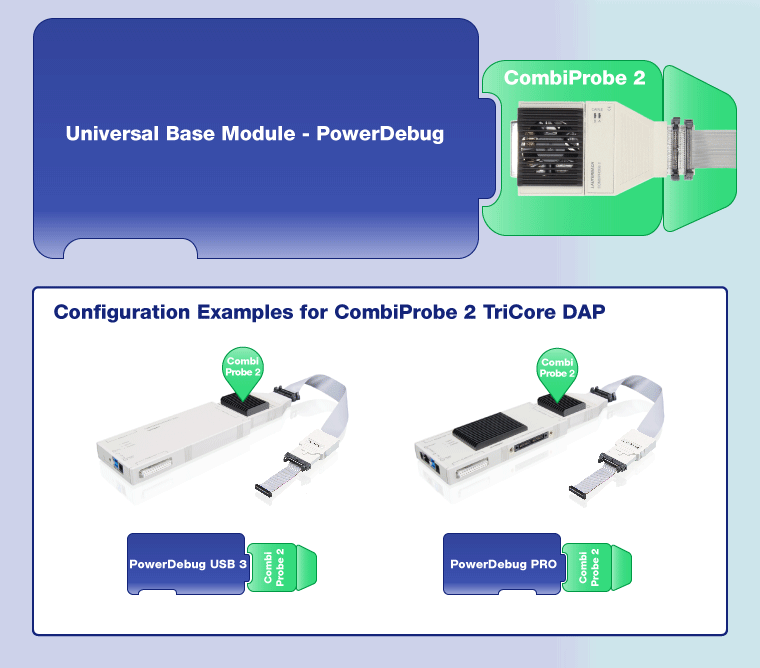

The photo on the left side shows a standard configuration with a USB3 interface to the host computer.
The extended configuration shown on the right side allows to connect the tool to Gigabit Ethernet.
